A private backbone network refers to an organization’s internal core network that interconnects its various local area networks (LANs) and provides a centralized shared connection to wide area networks (WANs) like the Internet.
The backbone network forms the primary private communications platform across the organization’s distributed sites and infrastructure.
It brings together thousands of users and devices and enables company-wide traffic routing, control, security, and management.
Private backbones provide high availability and reliability using fault-tolerant design and redundant components. They offer organizations faster internal communications and cost savings compared to leased network lines.
Need for a Backbone Network
Key drivers for deploying a private enterprise backbone network:
- Faster routing of traffic between locations
- Centralized network control and security policies
- Scalability to add new sites and capacity
- Reliable uptime using redundancy and failover
- Consistent performance not impacted by other organizations
- Ownership and control instead of dependence on telcos
- Cost savings compared to leased lines from providers
Backbone Network Architecture
A backbone network consists of:
- High-speed switching – Robust routers and multilayer switches route traffic using high-bandwidth connections up to 100Gbps speeds.
- Redundant paths – Provide automatic failover in case links go down to ensure constant uptime.
- Multiple interconnects – Critical sites connect to the backbone via multiple entry points for redundancy.
- High availability design – No single point of failure, with redundant hardware, links, power supplies, and connections.
- Security – Firewalls, intrusion prevention systems, and encryption safeguard all traffic.
- Network management – Centralized monitoring, analytics, traffic engineering, and administration.
Topology Options
Common topological designs for backbone networks include:
- Star topology – A central hub interconnects nodes in a star pattern. Easy to add and manage nodes.

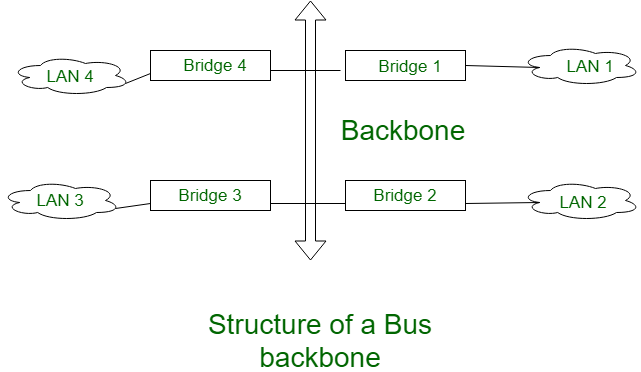

- Bus topology – Nodes connect to a central cable called a bus or backbone. Limited scalability.
- Ring topology – Nodes connect to their two neighboring nodes in a ring. Offers redundancy but limited performance.

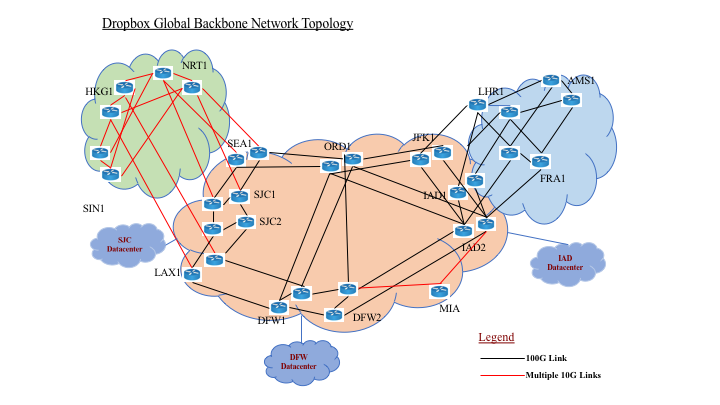

- Mesh topology – Nodes are interconnected with many redundant links. Robust and expensive to implement fully.
- Hybrid – A hierarchy of rings, bus, and star topologies. Offers balanced performance, cost, and reliability.
Backbone Interconnection Options
Enterprise backbone networks link together LAN subnets using:
- Trunk lines – High-capacity traffic aggregation links up to 100 Gbps. Carry multiple VLANs using 802.1Q tagging.
- WAN routers – Connect to wide area network links and public Internet. Provide firewalls, VPNs, traffic shaping, and monitoring.
- Core routers – High-performance routers forwarding vast amounts of packet traffic along the backbone.
- Redundant interconnects – Provide multiple active-active links between critical subnetworks and WAN routers.
Backbone Reliability and Performance
Backbones maximize reliability and performance using:
- Careful capacity planning for peak usage while allowing headroom.
- Low oversubscription ratios to prevent congestion.
- QoS and traffic shaping to guarantee throughput and latency for critical applications.
- High-speed redundant internal links up to 100GbE speeds.
- Load balancing across links and redundancy at all potential failure points.
- Monitoring and analytics to provision new capacity proactively.
Evolving Backbone Technologies
Modern backbones leverage technologies like:
- 10/40/100 Gbps Ethernet
- DWDM optical multiplexing
- MPLS fast packet switching
- Software-defined networking
- Network function virtualization
- Automation and orchestration
These provide ever-growing capacity while simplifying management.
Conclusion
A high-performance private backbone network provides the critical centralized infrastructure for an enterprise to connect its disparate locations, users, devices, and applications.
The backbone ties together the LANs and WANs to enable company-wide traffic routing and network control.
Though complex to design and implement, the organization gains performance, security, reliability, and cost savings from private ownership.
Ongoing evolution to new high-speed protocols and virtualized management will enable future innovation in enterprise backbone networks.
Frequently Asked Questions (FAQ)
Ques 1: What is the difference between a backbone network and a transit network?
Ans: A backbone network is an organization’s internal core network while a transit network is an ISP’s shared network that provides interconnects between customer sites and the Internet.
Backbones connect internal LANs while transit networks connect customer edge networks.
Ques 2: What routing protocols are commonly used in backbone networks?
Ans: Common routing protocols are BGP for routing between subnets and ISP links, OSPF as the internal backbone routing protocol, and EIGRP for routing to and from distribution layers to the backbone core.
Ques 3: What are some core backbone network devices?
Ans: Core devices include high-performance routers and multilayer switches for traffic forwarding, network monitoring and security tools, DWDM multiplexers for optical bandwidth aggregation, and console servers for device management.

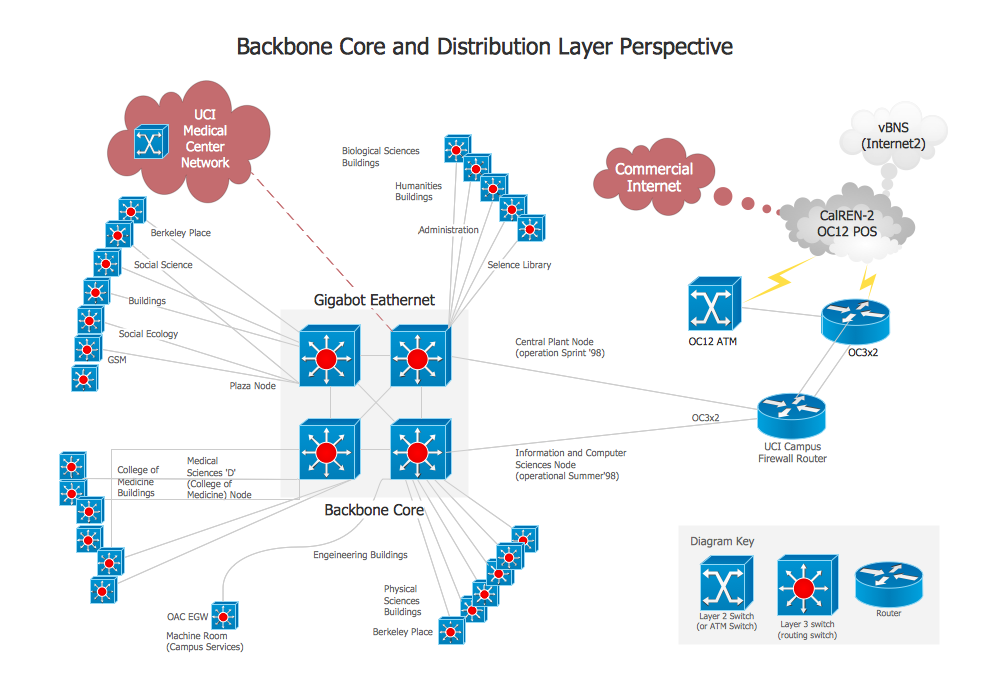

Ques 4: How does traffic flow between subnets across a backbone?
Ans: Subnets connect to backbone distribution layer switches which aggregate flows into high-speed trunk uplinks to the backbone core routers.
Traffic is routed between distribution switches to reach other subnets based on routing tables. The core provides high-speed transit across the backbone between endpoints.
Ques 5: Why use a mesh topology for fault-tolerant backbones?
Ans: A mesh topology provides built-in redundancy between nodes. If one path fails, traffic is automatically rerouted over the redundant links.
This maintains connectivity even with multiple link failures, providing maximum fault tolerance at the expense of greater cost.
