What Is Full Duplex Communication?

Full duplex communication refers to the transmission of data in two directions simultaneously.

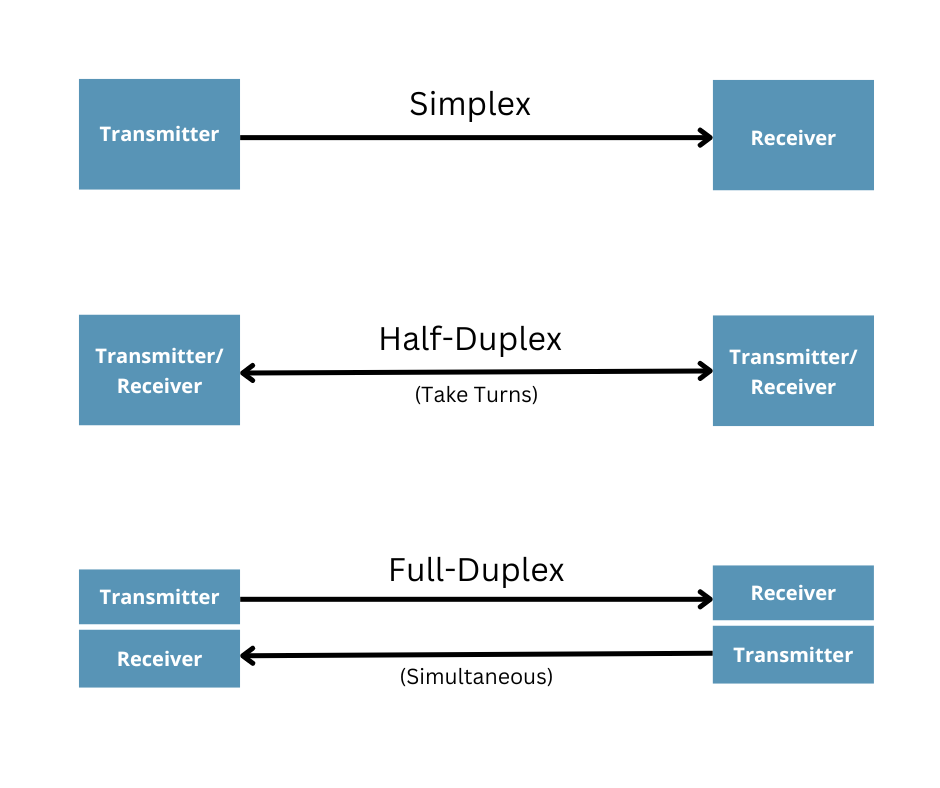

It enables two parties to communicate concurrently, without having to take turns speaking. This is in contrast to half-duplex communication where communication can only travel in one direction at a time.

A full duplex has become an important concept in telecommunications as it allows for more natural and efficient conversations.

It requires advanced hardware design to separate the outgoing and incoming signals to prevent interference. With the advent of new technologies, full duplex capabilities are now becoming available for more networks and devices.

This promises to further enhance real-time communications through applications like phone calls and video conferencing.

What Is Full Duplex Communication?

History of Full Duplex Communication

The idea of full duplex communication originated in the days of telegraphy in the 19th century. Early telegraph systems used a single wire for transmitting messages in both directions.

However, this was quickly found to be unreliable as collisions occurred when both parties transmitted at the same time.

The solution was to add a second wire dedicated to each direction of transmission. This enabled the first full-duplex telegraph communication in 1872 between British stations.

Further innovations like adding inductance coils helped prevent the outgoing and incoming signals from interfering with each other.

This allowed both parties to transmit and receive simultaneously on the same wire. The principles behind preventing this interference remain relevant even for modern full duplex systems.

How Full Duplex Communication Works

Full duplex communication requires being able to transmit and receive signals at the same time on the same frequency band.

This is achieved by using advanced electronics and software to separate the incoming and outgoing signals.

There are two main techniques used:

  • Echo cancellation – The transmitters subtract any outgoing signal heard in their receivers to avoid interference. Adaptive filters are used to model the expected echoes.
  • Frequency separation – The outgoing and incoming signals are transmitted in separate frequency bands. This prevents interference as only the corresponding band is received.

Modern full duplex radios can combine both techniques. The echo cancellation handles residual transmitted signals heard at the receiver.

Frequency separation provides isolation between the larger transmit and receive signals.

Sophisticated algorithms are needed to model and adaptively cancel echoes heard from the transmitters.

The radios also dynamically tune themselves to optimize performance as conditions change. This provides robust and reliable full duplex communication.

Applications of Full Duplex

Here are some key applications taking advantage of full duplex communication:

  • Phone Networks – Full duplex enabled the natural conversations possible over telephone networks by allowing both parties to talk and listen at the same time.
  • Two-Way Radios – Taxi, emergency services, and other professional radios widely use a full duplex to enable seamless back-and-forth communication.

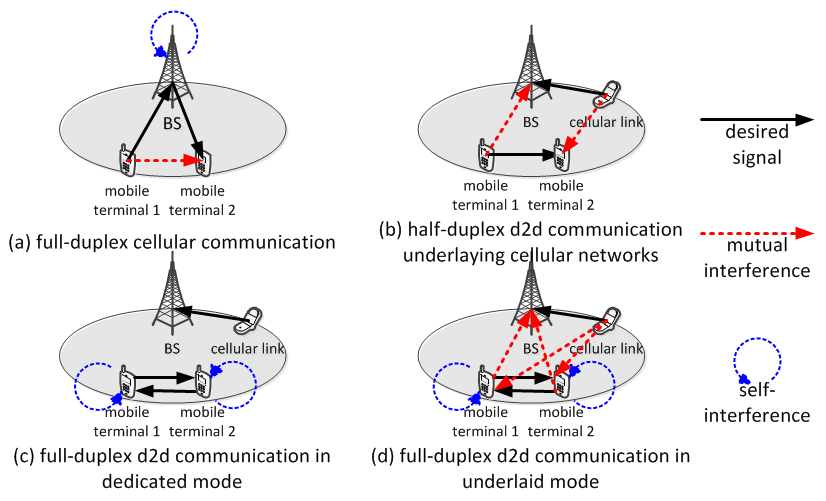

  • Cellular Networks – 2G and later cellular standards implemented full duplex communication, greatly enhancing call quality over earlier mobile networks.
  • VoIP Internet-based voice and video calling relies on a full duplex to enable free-flowing multimedia conversations.
  • Wireless Networks – Full duplex allows wireless networks to transmit and receive data simultaneously, potentially doubling throughput.
  • Fiber Optics – Full duplex fiber optic links can transmit data in both directions at once, maximizing capacity.

The low latency and natural conversational flow enabled by the full duplex make it critical for modern telecommunications technologies to transmit large amounts of data.

Challenges for Implementing Full Duplex

There are some key challenges involved in implementing reliable full duplex communication:

  • Echo Cancellation – Adaptive filters must model echoes down to very low levels to prevent interference. This requires complex algorithms and processing.
  • Analog-to-Digital Conversion – High-resolution ADC/DAC converts are needed to capture echoes and precisely subtract them.
  • Antenna Isolation – Sufficient isolation must be maintained between transmit and receive antennas to minimize coupling.
  • Radio Frequency Components – Duplexers, filters, and quality amplifiers help maintain separation between transmit and receive chains.
  • Synchronization – Precise synchronization is required between the outgoing and incoming signals to properly align echo cancellers.
  • Software Defined Radio – SDR techniques allow modifying signaling parameters on the fly to optimize full-duplex performance.

Overcoming these challenges requires expertise in areas like digital signal processing and RF engineering when developing full duplex-capable hardware.

The capabilities of the supporting software stacks are equally important.

The Future of Full Duplex Communication

Full duplex communication has come a long way from its origins in telegraphy. Here are some promising areas for further enhancements using full duplex:

  • 5G and Beyond – Next-generation wireless networks will leverage full duplex at higher frequencies like mmWave.
  • Satellite Communications – Eliminating turnaround delays through a full duplex can benefit satellite internet and backhaul links.
  • Data Center Networks – Full duplex at 100 Gbps and beyond will maximize throughput between servers.
  • Wireless Backhaul – Full duplex wireless backhaul can replace or supplement fiber runs.
  • IoT and Sensors – Duplex networking for low-power devices can enable new industrial and smart home applications.
  • Autonomous Vehicles – Full duplex wireless operation can allow greater coordination between vehicles.
  • Quantum Radios – Quantum entanglement technologies may one day enable inherently full duplex communications.

As full duplex techniques continue advancing, we can expect even more efficient, low latency, and reliable communication systems powering how information is exchanged globally.

Frequently Asked Questions (FAQ)

Ques 1. What is the key difference between full-duplex and half-duplex communication?

Ans. A full duplex allows communication in both directions simultaneously. Half duplex only allows communication in one direction at a time, requiring the parties to take turns transmitting and receiving.

Ques 2. When was full duplex communication first achieved?

Ans. The first full duplex communication occurred in 1872 between British telegraph stations using two dedicated wires for each direction.

This avoided interference between the outgoing and incoming signals.

Ques 3. How is a full duplex enabled on a cellular voice call?

Ans. Cell phones use sophisticated echo cancellation and frequency separation techniques to achieve a full duplex over the wireless link.

This allows both callers to speak and be heard clearly at the same time.

Ques 4. What are the main benefits of full duplex communication?

Ans. The main benefits are natural conversational flow, reduced latency, and increased throughput from transmitting data simultaneously in both directions.

This enables applications like phone calls and video chats.

Ques 5. What technology breakthroughs are needed to achieve a full duplex in wireless networks?

Ans. Advanced self-interference cancellation algorithms, high-resolution data converts, antenna designs, and software-defined radios are some key technologies allowing full duplex in modern wireless networks.
