IPv6: A Complete Guide

IPv6 stands for Internet Protocol version 6 and is the latest version of the Internet Protocol used for communicating data across the internet. It is the successor to the previous IPv4 protocol which is still widely used currently.

IPv6 was developed to overcome the limitation of IPv4 which has a limited number of available addresses. With exponential growth in internet-connected devices and users, IPv4 addresses are running out.

IPv6 provides a vastly larger address space of 128-bit addresses compared to 32-bit addresses in IPv4. This ensures the availability of addresses for the foreseeable future growth of the internet.

IPv6 also has improvements in routing, network configuration, security, and performance over IPv4.

In this article, we will learn about IPv6, why it was created, how it works, key differences between IPv4 and IPv6, types, benefits, and many more.

Why was IPv6 created?

The rapid growth of the internet led to IPv4 addresses getting exhausted. IPv6 was created to solve this addressing shortage along with other drawbacks of IPv4.

1. Address Shortage

The 32-bit addresses in IPv4 limit it to about 4 billion unique addresses. With more devices connecting to the internet globally, IPv4 addresses have become scarce.

In contrast, the 128-bit address space in IPv6 provides over 340 trillion trillion trillion unique addresses.

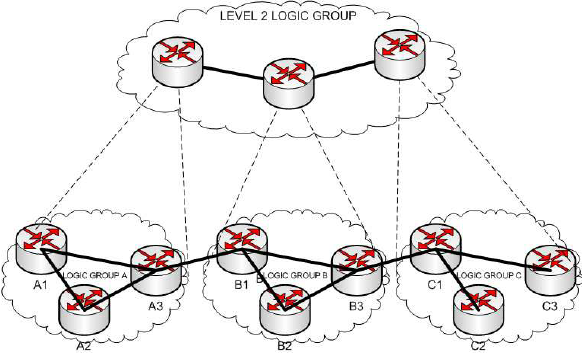

2. Lack of Routing Hierarchy

The IPv4 address structure lacked efficient hierarchical routing based on network topology. This resulted in complex route tables.

IPv6 addresses have a well-structured hierarchical format optimized for routing scalability.

3. Limited Functionality

IPv4 had limited built-in support for security, quality of service, and network management. IPv6 has native capabilities in these areas.

4. Growth Limitations

IPv4 imposed limits on the number of hosts per network and required manual address assignments. This complicated growth and management.

IPv6 uses auto-configuration to assign addresses and supports virtually unlimited devices per network.

So IPv6 was necessitated by the expansion of the internet and limitations of the aging IPv4 protocol.

How IPv6 Addresses Work?

Here is a brief overview of how IPv6 addresses work:

  • IPv6 addresses are 128-bit addresses, compared to the 32-bit addresses used in IPv4. This provides a vastly larger address space, allowing for potentially trillions of unique IP addresses.

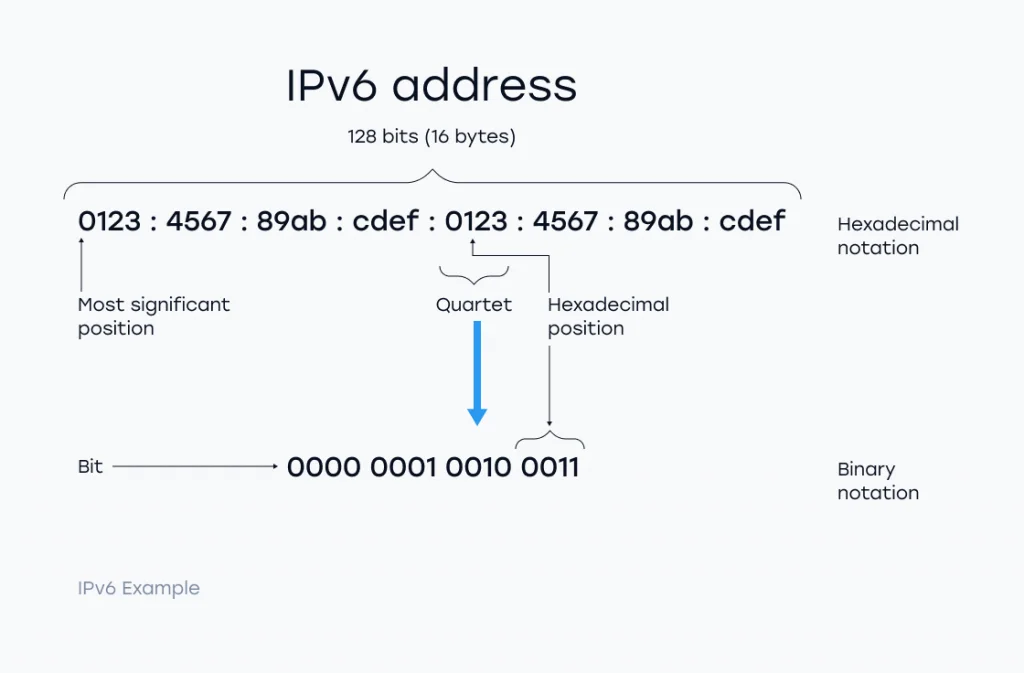

  • The 128-bit IPv6 address is typically represented as 8 groups of 4 hexadecimal digits separated by colons. For example 2001:0db8:85a3:0000:0000:8a2e:0370:7334.
  • Leading zeros in each group can be omitted, and successive groups of zeros can be replaced by double colons, like this: 2001:db8:85a3::8a2e:370:7334

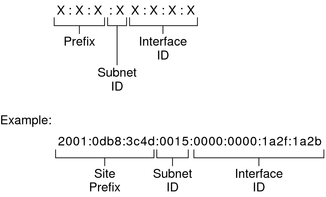

  • IPv6 addresses are allocated in blocks, similar to IPv4 Classless Inter-Domain Routing (CIDR). The prefix length indicates how many common initial bits are shared by addresses in the block.
  • IPv6 supports both unicast addresses (for a single interface) and anycast addresses (for a service provided by multiple interfaces).
  • Multicast addresses allow transmission packets to multiple interfaces. These start with ff00::/8.
  • Link-local addresses are used for communication within a local network segment and start with fe80::/10.
  • IPv6 eliminated broadcast addresses. Instead, a link-local multicast address is used.
  • ICMPv6 (ICMP for IPv6) provides error reporting and diagnostic functions like ping, neighbor discovery, router discovery, etc.
  • IPv6 connections typically use IPsec for end-to-end security rather than NAT. IPsec provides authentication, integrity, and confidentiality.

So in summary, the increased address space, simplified header, improved security, and new features make IPv6 well-suited for the modern Internet.

But IPv4 and IPv6 are still both widely used today during this transition period.

Key Differences Between IPv4 vs IPv6

Here is a comparison of some key differences between IPv4 and IPv6:

32-bit address128-bit address
Supports 4 billion devicesSupports 340 trillion trillion trillion devices
Complex classful network addressingSimplified hierarchical addressing
Limited traffic prioritizationBuilt-in quality of service
Basic security with NATEnd-to-end security with IPsec
Manual host configurationAuto-configuration of addresses
Limited options and extensionsFlexible options and extensions
Fragmentation is router-processedFragmentation is end-to-end
Broadcast based networkingMulticast networking
Checksum at each network layerChecksum only at the transport layer
Limited routing scalabilityHierarchical routing for better scalability

So in summary, IPv6 provides expanded addressing, improved routing, security, performance, and management compared to IPv4.

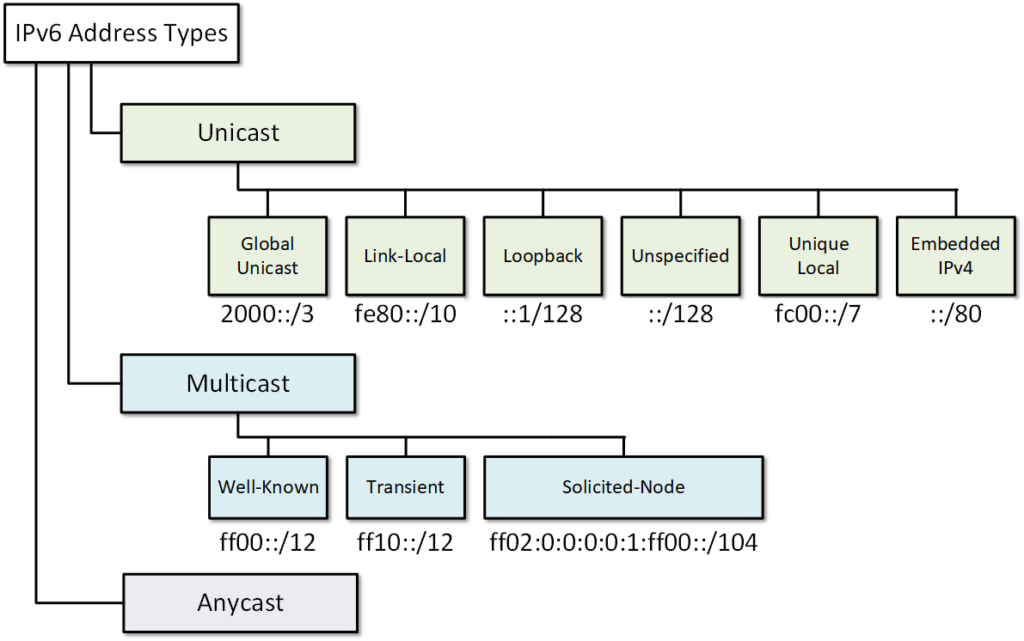

IPv6 Address Types

There are several types of IPv6 addresses used for different purposes:

  • Unicast – Addresses a single network interface. Used for most communications.
  • Multicast – Identifies a group of network interfaces. Used in one-to-many communications.
  • Anycast – Identifies a group of interfaces. Used in one-to-nearest communications.
  • Loopback – Used by a node to send packets to itself. Equivalent to IPv4’s
  • Unspecified – Indicates lack of an address. Equivalent to IPv4’s
  • Link-local – Used for communications within a logical network segment or link. Autoconfigured locally.
  • Unique Local – Used like private IP addresses in IPv4. Not routable on the global internet.

IPv6 addressing provides flexibility for different communication requirements.

Key Benefits of IPv6

Here are some major advantages that IPv6 provides over IPv4:

  • Virtually unlimited address space for future growth.
  • Efficient and scalable routing architecture.
  • Faster routing looked due to a simplified header.
  • Built-in IPsec security and privacy capabilities.
  • Autoconfiguration to assign IP addresses automatically.
  • Native multicast and anycast to enable new applications.
  • Better support for devices connecting directly to the internet.
  • Flexibility in adding custom options and extensions.
  • Capabilities to prioritize and manage different traffic types.
  • Support for mobile devices and mobility.

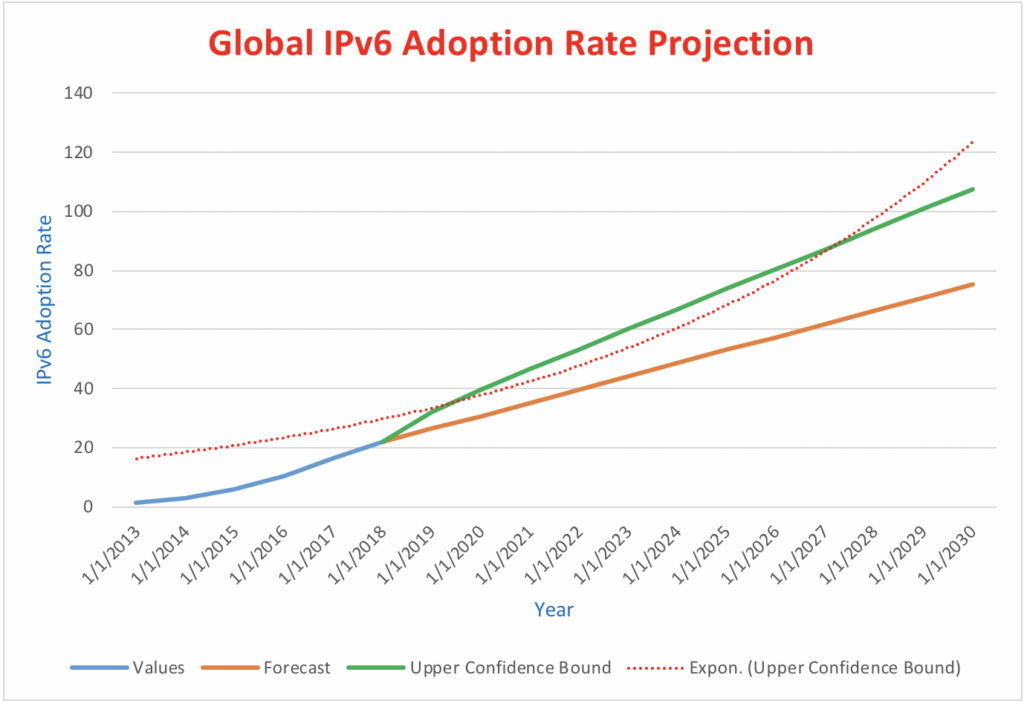

IPv6 Deployment and Adoption Trends

While IPv6 was standardized in the 1990s, adoption has picked up momentum in the last decade:

  • IPv6 traffic – Estimated at around 30% of global internet traffic in 2022. Mostly from mobile devices.
  • Service providers – Most major internet service providers have enabled IPv6 connectivity. However, many still use transitional technologies.
  • Websites – About 30% of the Alexa top 1000 websites are reachable over IPv6, up from less than 5% a decade ago.
  • Devices and software – Most modern equipment and software support IPv6. Mobile OSes like Android and iOS have full IPv6 support.
  • Government mandates – Many governments have set timelines and targets for IPv6 adoption in their countries.

So IPv6 usage is growing rapidly in line with the exhaustion of IPv4 addresses. However, IPv4 is expected to co-exist with IPv6 for a long time during the transition.

IPv6 Transition Mechanisms from IPv4

Since IPv4 is so widely deployed, the transition is not instantaneous. Here are some techniques used to gradually transition:

  • Dual-stack deployment – Networks run both IPv4 and IPv6 together and shift traffic between them.
  • Tunneling – IPv6 traffic is encapsulated within IPv4 packets to route over IPv4 networks.
  • Translation – Converting between IPv6 and IPv4 addresses for compatibility.
  • Header rewriting – IPv6 packet headers are modified to look like IPv4 packets.

These mechanisms allow the internet to shift steadily to IPv6 while maintaining backward compatibility with existing IPv4 infrastructure during the transition.

Challenges Faced in IPv6 Deployment

While IPv6 is maturing, some challenges faced by organizations in deploying it include:

  • Hardware and software compatibility – Ensuring all infrastructure elements support IPv6.
  • Availability of IPv6 addresses – Getting allocated IPv6 addresses and subnets from ISPs and regulators.
  • Transition mechanisms – Getting tunneling, translation, and dual-stack options working.
  • Prioritizing IPv6 traffic – Classifying and routing IPv6 versus IPv4 traffic.
  • Security – Implementing end-to-end security, firewalls, and IPS.
  • Cost – Justifying investment required to upgrade equipment and software.
  • Lack of IPv6 experience – Building practical know-how for design, deployment, and management.
  • Technical complexities – IPv6 has some complexities like bigger addresses, neighbor discovery, etc.

IPv6 Adoption Best Practices

Here are some best practices organizations should follow for adopting IPv6:

  • Planning – Develop detailed IPv6 deployment roadmaps and service strategies.
  • Training – Educate technical teams on IPv6 fundamentals, way ahead of deployment.
  • Co-existence – Ensure networks, apps, and services work on both IPv4 and IPv6 during the transition.
  • Addressing – Obtain IPv6 address space from ISPs and plan allocation.
  • Routing – Enable IPv6 routing in the core and DMZ network segments first.
  • Transition – Leverage tunneling, NAT, and proxies to ensure a gradual transition.
  • Security – Implement IPv6 native security, access controls, and auditing.
  • Monitoring – Track performance, traffic patterns, and adoption metrics for IPv4 vs IPv6.
  • Testing – Test across all use cases – apps, network, security, interoperability.

Frequently Asked Questions (FAQ)

Ques 1. Why does IPv6 use such long addresses?

Ans. The primary reason is to provide an almost unlimited number of unique IP addresses to support future internet growth and new use cases.

Ques 2. Is IPv6 mandatory?

Ans. While not universally mandatory, IPv6 is increasingly becoming a requirement as more ISPs shift towards it and IPv4 addresses get exhausted.

Ques 3. Is IPv6 the same as TCP/IP?

Ans. TCP and IP are distinct protocols. TCP operates at the transport layer while IP operates at the network layer. IPv6 is the latest version of IP.

Ques 4. Does IPv6 improve internet speeds?

Ans. IPv6 can enable faster routing and transfer speeds due to simpler headers, better prioritization, and underlying high-speed networks. But performance depends on many factors.

Ques 5. Are IPv4 and IPv6 interoperable?

Ans. Yes, techniques like dual stack and tunneling allow IPv6 and IPv4 hosts to interoperate while the transition is underway. This ensures backward compatibility.
