Packet switching is a method of grouping data into packets that are transmitted over a digital network.
Instead of establishing a dedicated circuit or channel between nodes, packet switching allows multiple users to share the same path and transmit data packets in intervals.
This makes it an efficient method for transferring data as it maximizes network capacity. Packet switching has become the primary basis for data communications worldwide and underlies transport protocols such as TCP/IP, UDP, and SPX.
It allows for more robust data transfer compared to circuit switching and has enabled high-speed data networks to develop.
Packet switching technology was conceptualized in the 1960s and implemented on ARPANET, which later evolved into the Internet. Today, it continues to be an integral part of all modern data networks.

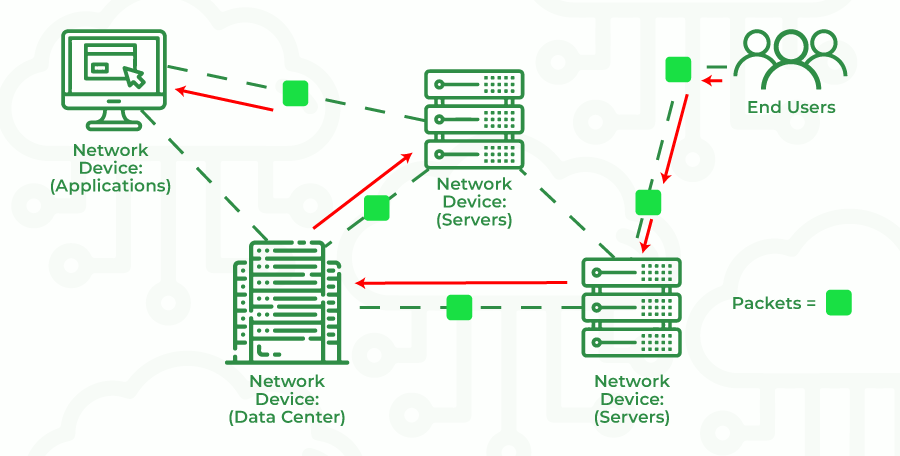

How Packet Switching Works?
In packet switching, the following steps occur:
- The message is divided into packets of fixed or variable sizes. Each packet contains a header with source and destination addresses.
- The packets are sent through the network independently and can take different routes to the destination.
- Packets are buffered and queued along the route to prevent network congestion.
- Packets arrive at the destination and are reassembled into the original message using the headers.
- Acknowledgments are sent back to the source upon safe receipt of packets.
The major advantage of packet switching is that it allows multiple users to share network capacity.
It also makes the network robust against hardware failure since routers can dynamically determine transmission paths.
Comparison with Circuit Switching
In circuit switching, a dedicated connection is established between nodes before communication begins.
This leads to the underutilization of network resources. Packet switching overcomes this by allowing many users to share paths simultaneously.
While circuit switching transfers data at constant rates, packet switching makes bursty transfers possible based on the availability of routes.
Packet switching also enables more reliable communication through dynamic rerouting of packets.
Packet Switching Protocols
Several standard protocols have been designed to enable packet-switched communication between networked devices.

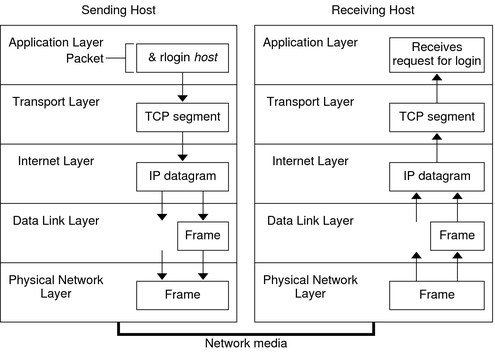

1. TCP/IP
TCP/IP (Transmission Control Protocol/Internet Protocol) is the most widely used packet-switching protocol. It underlies communication over the Internet.
TCP handles the assembling of message packets, acknowledgments, and retransmissions. IP handles the addressing and routing of packets.
2. X.25
X.25 is a packet-switching protocol standard designed for wide-area networks. It provides flow and error control between network nodes. X.25 laid the foundations for many modern protocols.
3. Frame Relay
Frame relay is a packet switching protocol that is optimized for high-speed bursty traffic.
It is used for connecting LANs over wide areas. Frame relay does not provide error and flow control but guarantees packet delivery.
4. ATM
ATM (Asynchronous Transfer Mode) is a protocol designed for real-time transfer of voice, video, and data. It uses fixed-size packets called cells to achieve fast transfers.
ATM provides Quality of Service control for different types of traffic.
Packet Switching Networks
Packet-switched networks began development in the 1960s and have evolved into high-speed global data networks.
1. Early Networks
Early packet-switched networks were ARPANET and CYCLADES. ARPANET used Interface Message Processors to connect sites while CYCLADES developed packet-switching satellite channels.
2. X.25 Based Networks
The X.25 protocol standard led to the development of worldwide public data networks like DATAPAC, Easynet, TELENET, and TYMNET. These provided budget connectivity to computer users.
3. NSFNET and the Internet
NSFNET created a backbone for connecting academic institutions in the US. As TCP/IP became standardized, NSFNET evolved into what we know as the modern Internet.
4. Cellular Networks
Packet switching is also implemented over 2G, 3G, and 4G cellular networks using the GPRS, EDGE, and LTE protocols for mobile broadband.
5G further improves last-mile packet switching performance.
Advantages
Packet switching provides several benefits that have made it integral to modern data networks:
- Efficient use of network capacity via statistical multiplexing of packets
- Flexible data transfers using bursty communication
- Low latency is required to establish communication
- Reliable transfer of data through acknowledgments and retransmissions
- Robustness against link failures via dynamic routing of packets
- Support for differentiation of traffic types through Quality of Service control
- Interconnection of networks using standardized protocols
Limitations
Packet switching does have some drawbacks:
- Packets incur addressing and routing overheads
- Packets may experience variable delays (jitter) transiting the network
- Packets could get lost or dropped due to link errors or congestion
- Packets may arrive out of order and need re-sequencing
- Security and privacy risks since packets route through intermediary nodes
- Lack of built-in flow control and congestion control in basic protocols
The Future of Packet Switching
Packet switching will continue to dominate as network communication becomes faster, more mobile, and smarter:
- 5G and upcoming 6G networks will further enhance last-mile packet transmission
- Satellite broadband like Starlink will expand global packet-switching coverage
- Packets will route over programmable networks using technologies like SDN and NFV
- Packets will carry AI/ML model parameters to enable distributed intelligence
- Quantum communication networks may integrate quantum packet switching
So packet switching will continue to evolve hand-in-hand with emerging network technologies.
Frequently Asked Questions (FAQ)
Ques 1. Why is packet switching better than circuit switching?
Ans. Packet switching allows statistical multiplexing of data from multiple users onto shared network capacity.
It also does not require an end-to-end connection to be established beforehand. This makes it more efficient than circuit switching.
Ques 2. What are the main components of a packet-switching network?
Ans. The main components are end devices, communication links, packet switches/routers, buffers, and queues.
End devices connect to the network to send and receive packets. Links carry packets between nodes.
Routers determine the forwarding path for packets. Buffers temporarily hold packets while queues order waiting packets.
Ques 3. How are packets routed in a packet-switched network?
Ans. Packets are routed independently based on address information in the packet header and routing tables at each node.
Routers look at the destination address and determine the next hop. Packets take dynamically determined paths that are not fixed circuits.
Ques 4. Why do packets need sequence numbers during transfer?
Ans. Sequence numbers allow the receiving end to reassemble packets in the proper order.
Since different packets may take different routes, they can arrive out of order. Sequence numbers enable correct resequencing of the message.
Ques 5. What leads to congestion in packet-switched networks?
Ans. Congestion occurs when too many packets try to cross some link in too short a duration. This fills up buffers and leads to packet loss.
Congestion control mechanisms like TCP use techniques like throttling, acknowledgments, and windowing to regulate packet flow.
